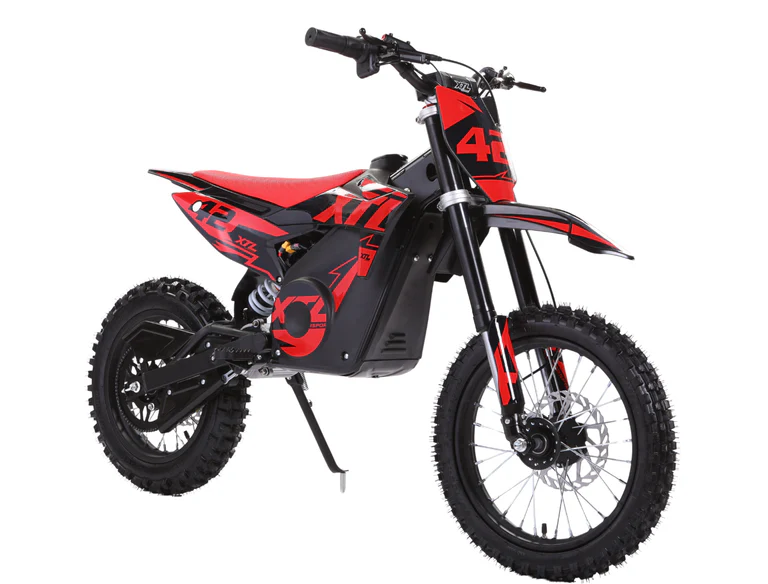

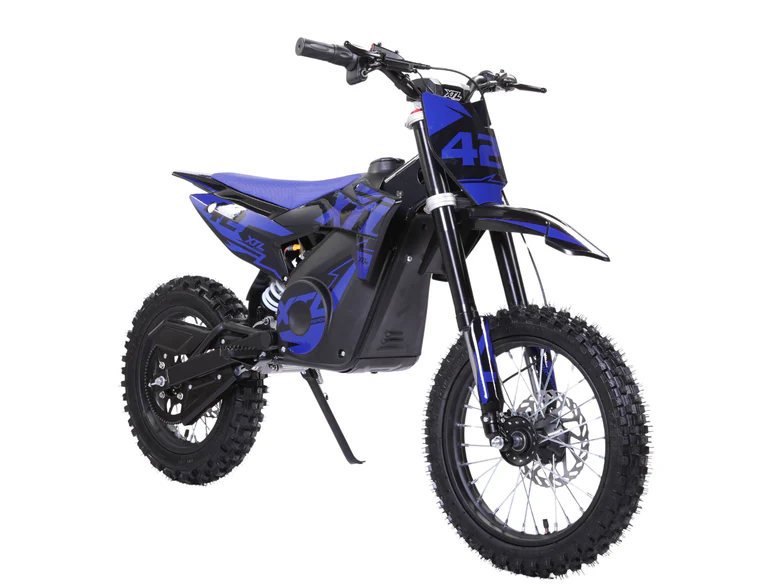

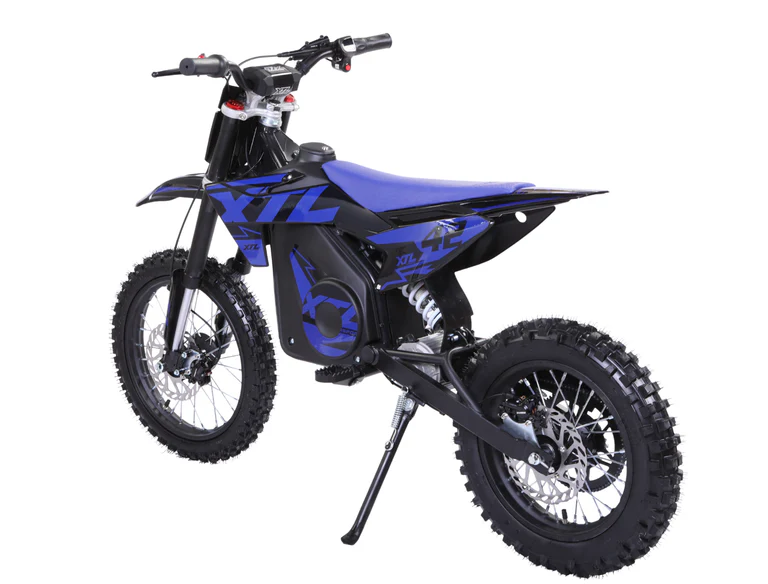

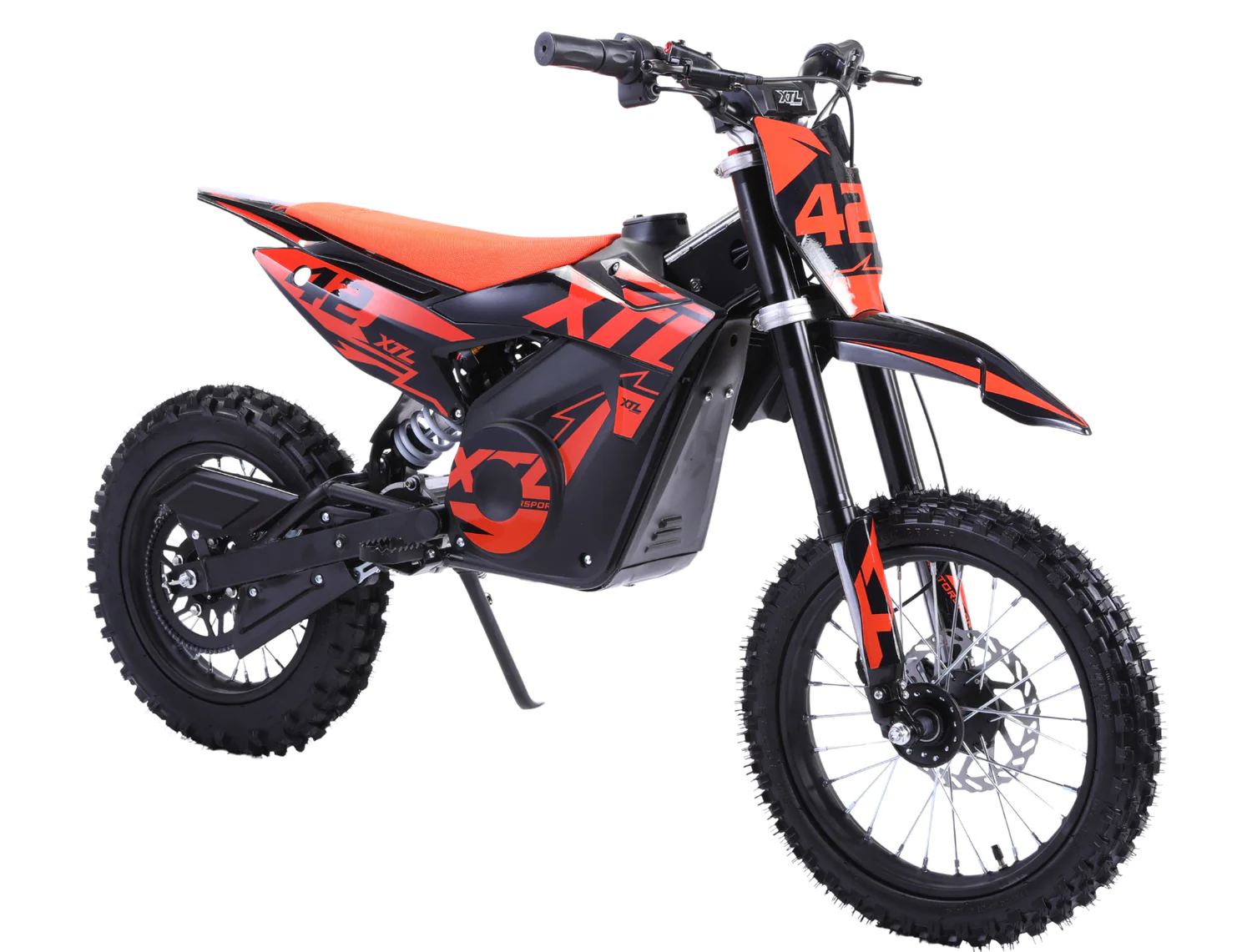

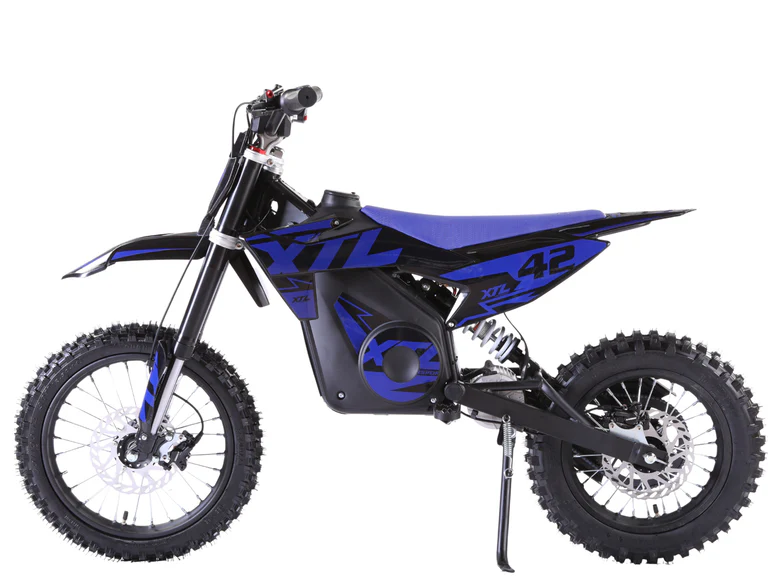

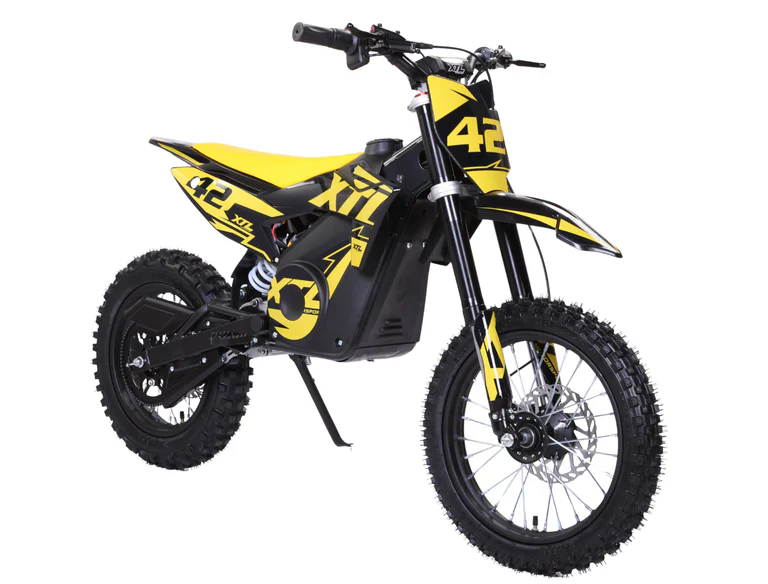

The Electric Midi Cross ED05 is the perfect electric motocross bike for young riders who want to experience real off-road excitement — quiet, emission-free, and powered by modern brushless technology. With 1300W performance, a 48V lithium battery, and adjustable speed control, this e-motocross bike delivers maximum performance with full control. It also features an emergency stop switch for added safety.

Motor & Speed

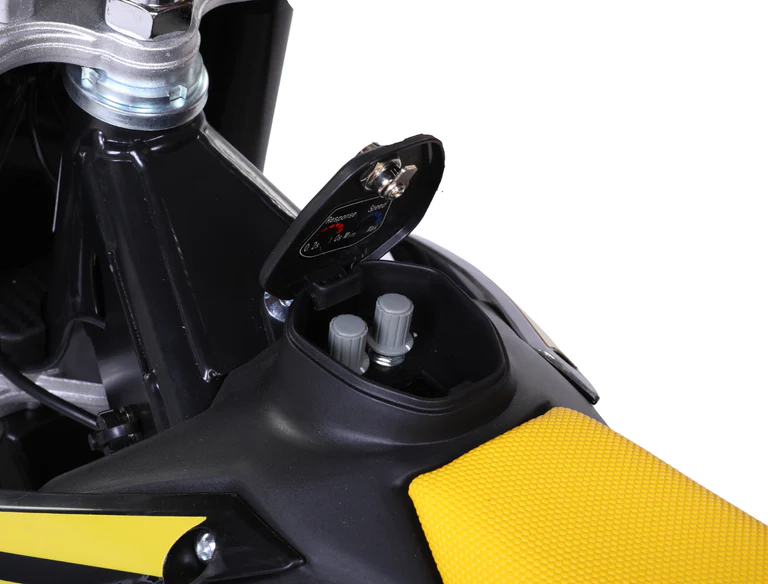

The speed can be individually adjusted from 8 km/h up to 38 km/h. Using the adjustment knob (shown in the last image), you can easily select the desired speed level. The small compartment can then be locked with a key so that children cannot change the settings themselves.

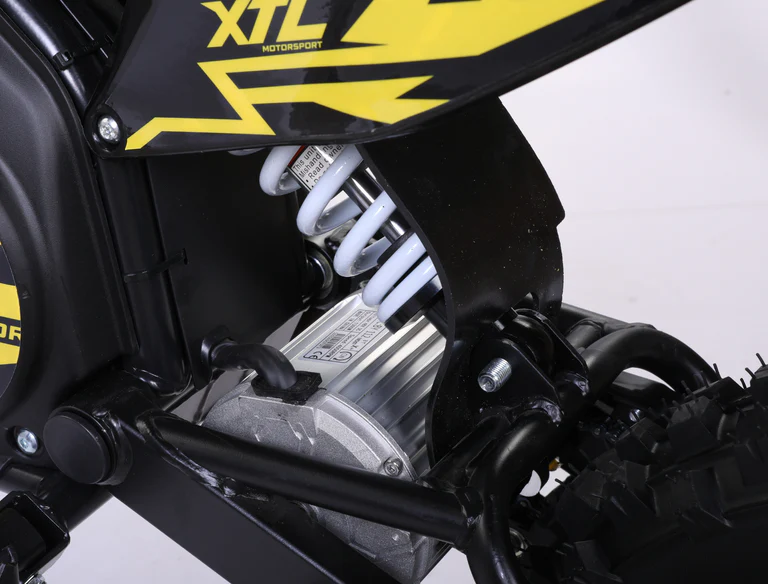

• Motor: 1300W 48V Neodymium Magnet DC Brushless Motor
• Battery: 48V 13Ah Lithium Battery
• Range: approx. 24 km per charge
• Intelligent controller with dual adjustment system:
  • Throttle response adjustable from 0.2s to 1.0s (twist throttle)
• Final drive ratio: front 10T / rear 76T

Battery Charging Instructions

• Turn off the bike before charging
• Plug the charger into the power outlet first
• Then connect it to the charging port on the bike
• First charge: approx. 10 hours
• Recharge after every use
• Red light = charging | Green light = fully charged
• Do not leave the battery completely discharged
• Detailed instructions are included in the user manual

Safety & Control

• Brakes: hydraulic disc brake with motor cutoff
• Front suspension: hydraulic upside-down fork

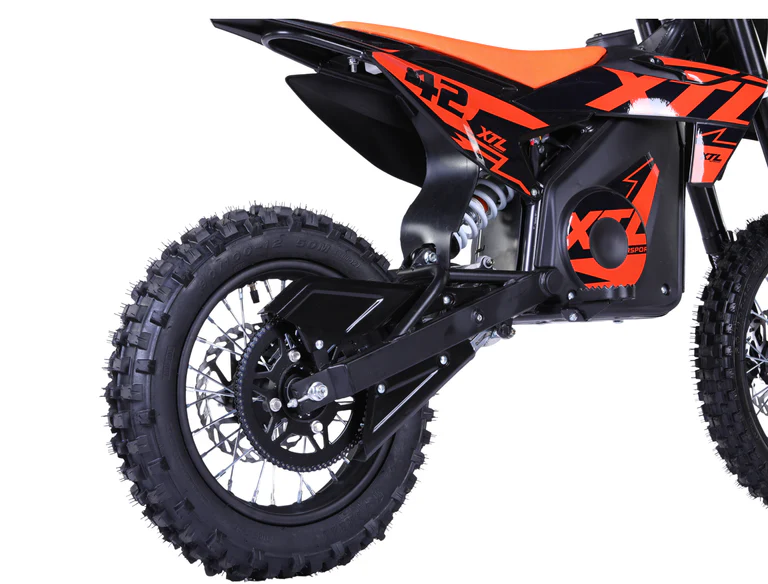

• Rear suspension: hydro mono shock absorber
• Maximum load capacity: 65 kg

Off-Road Chassis & Dimensions – Stable, Lightweight & Terrain-Ready

• Wheels: high-strength steel spoke rims
  • Front: 14”
  • Rear: 12”
• Tires: 47 cm height × 45 cm diameter × 7 cm width
• Wheelbase: 1010 mm
• Ground clearance: 31 cm
• Seat height (ground to seat): 70 cm
• Footrest height: 33 cm
• Overall dimensions: 1470 × 640 × 920 mm
• Dry weight: 38 kg

Why Choose the ELECTRIC MIDI CROSS ED05?

• Powerful 1300W electric motocross bike
• Adjustable speed from 8–38 km/h
• Quiet and low-maintenance brushless motor
• Lightweight design at only 38 kg
• Ideal for off-road riding, private tracks, and beginner motocross riders

The ED05 combines performance, safety, and modern electric technology to deliver an exciting off-road riding experience for young motocross enthusiasts.
